March 1, 2021 Arctic Ice Recovers from PV Hit


Update March 1, 2021 to previous post

This update is to note a dramatic effect on Okhotsk Sea ice coincidental with the Polar Vortex (PV) event that froze Texas and other midwestern US states mid-February.  When Arctic air extends so far south due to the weak and wavy vortex, warmer air replaces the icy air in Arctic regions.  In this case, the deficits to sea ice extent appeared mostly in the Sea of Okhotsk in the Pacific and Barents Sea in the Atlantic.  After a sharp drop, ice extents are again building toward the Arctic annual maximum, typically mid-March.

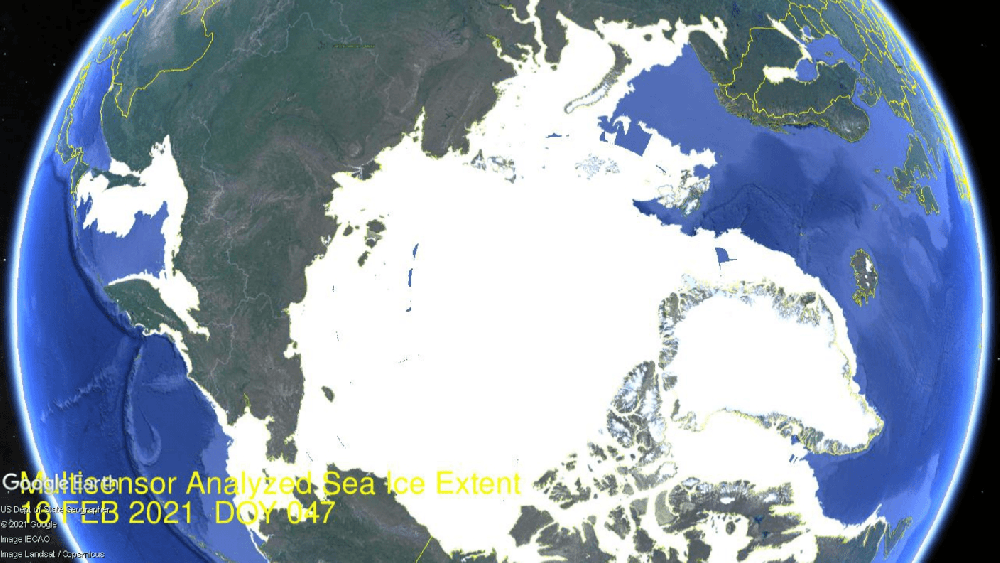

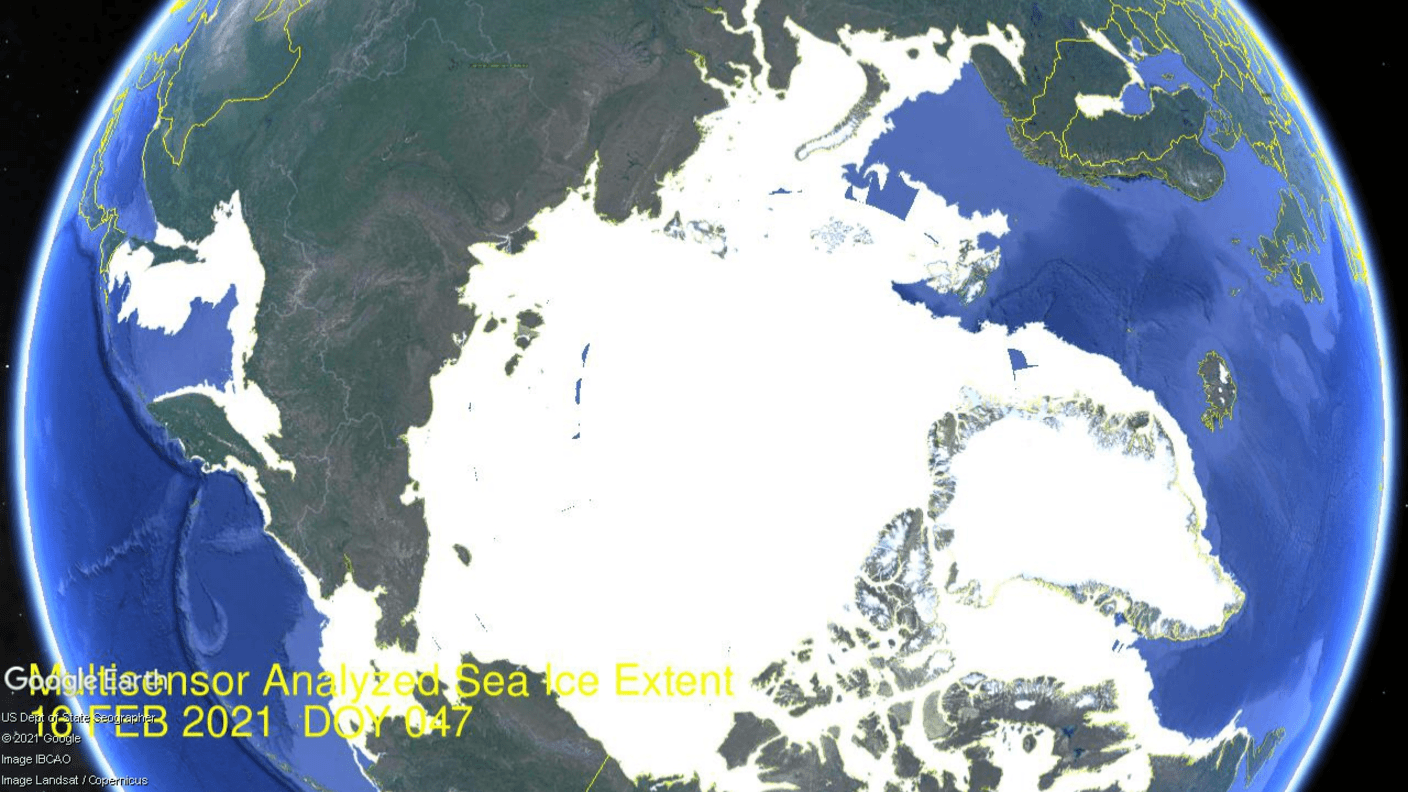

The animation above shows the drop and recovery in the last two weeks.  In the Pacific, the PV did little to Bering Sea ice on the lower left, ending the month up about 50k km2.  More dramatic was the PV effect in Okhotsk upper left, where 200k km2 of ice was lost in 5 days, followed by gaining it all back plus some new ice to reach a new high for the year at 95% of 2020 March maximum.  In the Atlantic Barents Sea upper right first retreats from Svalbard, before refreezing.  Middle right Greenland Sea ice is seen receding and then growing, while bottom right Baffin Bay shows a similar pattern. Barents Sea ice was higher than last year,  before losing 175k km2 during the PV, then recovering some back ending the month at 95% of March 2020 maximum.

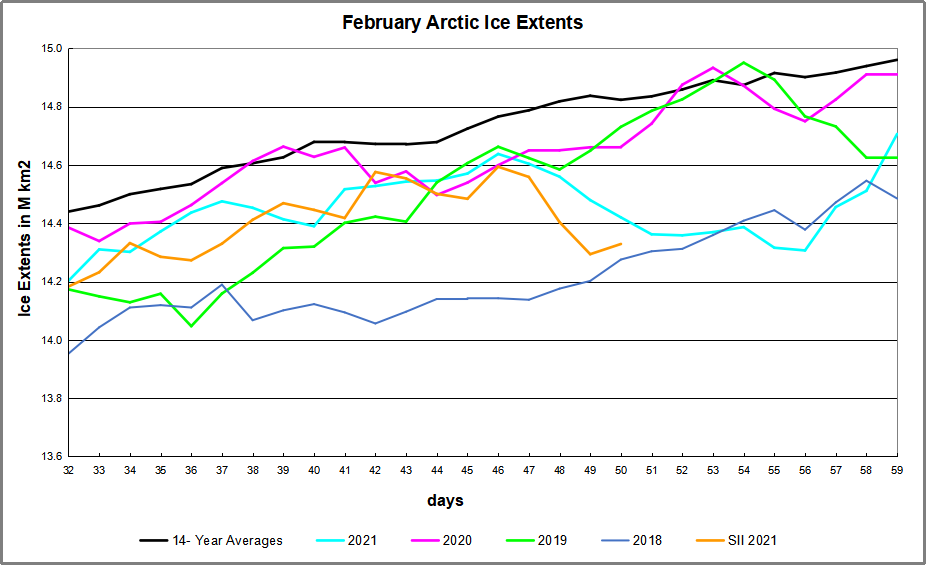

The graph below shows the February drop and recovery.

Note both MASIE and SII showing a peak of 14.6M km2 nearing the 14-year average on day 46.  Something went wrong with SII, which has not updated its record since day 50.  MASIE has continued, showing losses down to day 56, followed by a sharp rise ending the month at 14.7M km2, a new max for the year.

Some comments from Dr. Judah Cohen Feb. 15 from his AER blog Arctic Oscillation and Polar Vortex Analysis and Forecasts  Excerpts in italics with my bolds.

I have been writing how the stratospheric PV disruption that has been so influential on our weather since mid-January has been unusual and perhaps even unique in the observational record, so I guess then it should be no surprise that it’s ending is also highly unusual. I was admittedly skeptical, but it does seem that the coupling between the stratospheric PV and the tropospheric circulation is about to come to an abrupt end.

The elevated polar cap geopotential height anomalies (PCHs) related to what I like to refer to the third and final PV disruption at the end of January/early February quickly propagates to the surface and even amplifies, peaking this past weekend. And as I have argued, it is during spikes in PCH when severe winter is most likely across the NH mid-latitudes, as demonstrated in Cohen et al. (2018).

But rather than the typical gradual influence from the stratospheric PV disruption over many weeks, maybe akin to the drip, drip, drip of a leaky faucet, the entire signal dropped all at once like an anchor. This also likely contributed to the severity of the current Arctic outbreak in the Central US that is generational and even historical in its severity. But based on the forecast the PV gave all it had all at once, and the entire troposphere-stratosphere-troposphere coupling depicted in Figure ii is about to abruptly end in the next few days.

I am hesitant to bring analogs before 2000 but the extreme cold in Texas did remind me of another winter that brought historic Arctic outbreaks including cold to Texas – January 1977. It does appear that the downward influence from the stratospheric PV to the surface came to an abrupt end at the end of January 1977 . . . Relative to normal, January 1977 was the coldest month for both Eurasia and the US when stratosphere-troposphere coupling was active. But the relative cold did persist in both the Eastern US and northern Eurasia in February post the stratosphere-troposphere coupling. By March the cold weather in the Eastern US was over but persisted for northern Eurasia.

See also No, CO2 Doesn’t Drive the Polar Vortex

Background from Previous Post

In January, most of the Arctic ocean basins are frozen over, and so the growth of ice extent slows down.  According to SII (Sea Ice Index) January on average adds 1.3M km2, and this month it was 1.4M.  (background is at Arctic Ice Year-End 2020).  The few basins that can grow ice this time of year tend to fluctuate and alternate waxing and waning, which appears as a see saw pattern in these images.

Two weeks into February Arctic ice extents are growing faster than the 14-year average, such that they are approaching the mean.  The graph below shows the ice recovery since mid-January for 2021, the 14-year average and several recent years.

The graph shows mid January a small deficit to average, then slow 2021 growth for some days before picking up the pace in the latter weeks.  Presently extents are slightly (1%) below average, close to 2019 and 2020 and higher than 2018.

February Ice Growth Despite See Saws in Atlantic and Pacific

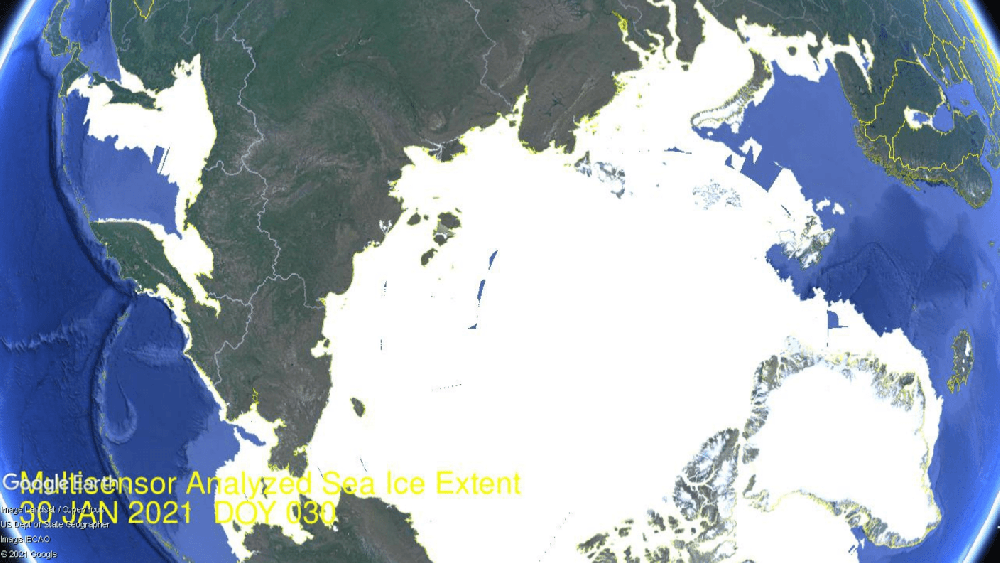

As noted above, this time of year the Arctic adds ice on the fringes since the central basins are already frozen over.  The animation above shows Barents Sea on the right (Atlantic side) grew in the last two weeks by 175k km2 and is now 9% greater than the maximum last March.  Meanwhile on the left (Pacific side)  Bering below and Okhotsk above wax and wane over this period. Okhotsk is seen growing 210k km2 the first week, and giving half of it back the second week.  Bering waffles up and down ending sightly higher in the end.

The table below presents ice extents in the Arctic regions for day 44 (Feb. 13) compared to the 14 year average and 2018.

Region 2021044 Day 044 Average 2021-Ave. 2018044 2021-2018
 (0) Northern_Hemisphere 14546503 14678564 -132061 14140166 406337
 (1) Beaufort_Sea 1070689 1070254 435 1070445 244
 (2) Chukchi_Sea 966006 965691 315 965971 35
 (3) East_Siberian_Sea 1087120 1087134 -14 1087120 0
 (4) Laptev_Sea 897827 897842 -15 897845 -18
 (5) Kara_Sea 934988 906346 28642 874714 60274
 (6) Barents_Sea 837458 563224 274235 465024 372434
 (7) Greenland_Sea 645918 610436 35482 529094 116824
 (8) Baffin_Bay_Gulf_of_St._Lawrence 1057623 1487547 -429924 1655681 -598058
 (9) Canadian_Archipelago 854597 853146 1451 853109 1489
 (10) Hudson_Bay 1260471 1260741 -270 1260838 -367
 (11) Central_Arctic 3206263 3211892 -5630 3117143 89120
 (12) Bering_Sea 559961 674196 -114235 319927 240034
 (13) Baltic_Sea 116090 94341 21749 76404 39686
 (14) Sea_of_Okhotsk 1027249 930357 96892 911105 116144
 (15) Yellow_Sea 9235 28237 -19002 33313 -24078
 (16) Cook_Inlet 223 11137 -10914 11029 -10806

The table shows that Bering defict to average is offset by surplus in Okhotsk.  Baffin Bay show the largest deficit, mostly offset by surpluses in Barents, Kara and Greenland Sea.

The polar bears have a Valentine Day’s wish for Arctic Ice.


And Arctic Ice loves them back, returning every year so the bears can roam and hunt for seals.


Seesaw accurately describes Arctic ice in another sense:  The ice we see now is not the same ice we saw previously.  It is better to think of the Arctic as an ice blender than as an ice cap, explained in the post The Great Arctic Ice Exchange.
